Common Laboratory Equipment

Below are images of common laboratory equipment you’ll be using this semester. For each image, identify the correct name of the equipment and describe its function in your own words. This list doesn’t include every tool you’ll encounter, so feel free to keep adding to it as we use new equipment throughout the course.

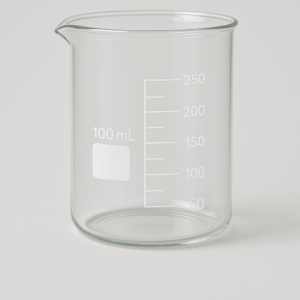

Shows a beaker.
Image generated by OpenAI’s DALL·E.

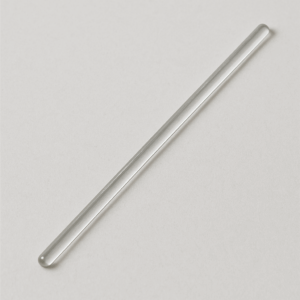

Shows a glass stirring rod.
Image generated by OpenAI’s DALL·E.

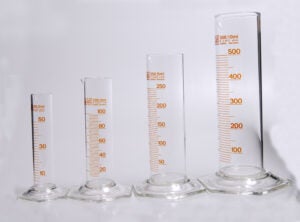

Shows various sizes of graduated cylinders.
Lilly_M, CC BY-SA 3.0
Graduated Cylinders

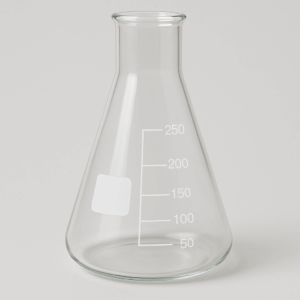

Shows an Erlenmeyer flask.
Image generated by OpenAI’s DALL·E.

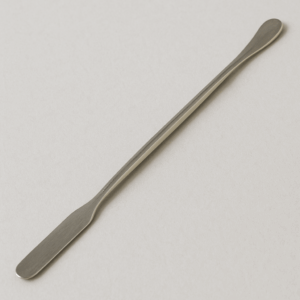

Shows a spatula.
Image generated by OpenAI’s DALL·E.
Shows beaker tongs.
Lilly_M, CC BY-SA 3.0
Crucible Tongs

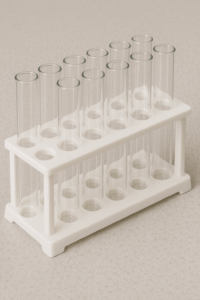

Shows test tubes with test tube rack.
Image generated by OpenAI’s DALL·E.
Shows a striker.
Lilly_M, CC BY-SA 3.0
Laboratory Fire Striker

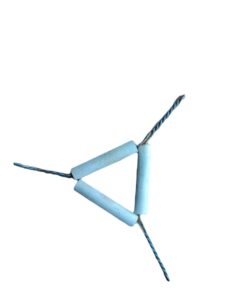

Shows a clay triangle.
Mike V. UCE, CC BY-SA 4.0
Porcelain Triangle

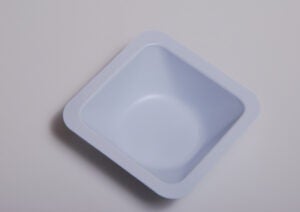

Shows a disposable weighing boat/tray.
Lilly_M, CC BY-SA 3.0
Disposable Weighing Boat

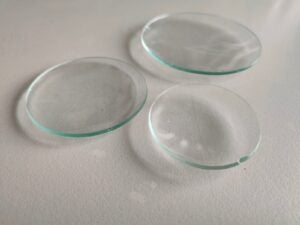

Shows various sizes of watch glasses.
ZumaiaHE10, CC BY-SA 4.0
Watch Glass
Shows a lit Bunsen burner.
Image generated by OpenAI’s DALL·E.

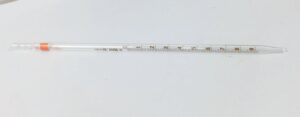

Shows a pipette.
Anisa Ghogar, CC BY-SA 4.0
Pipette

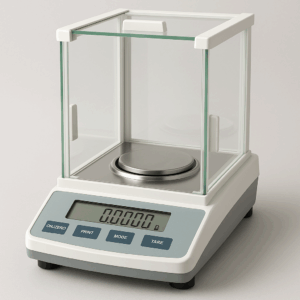

Shows an analytical balance.
Image generated by OpenAI’s DALL·E.

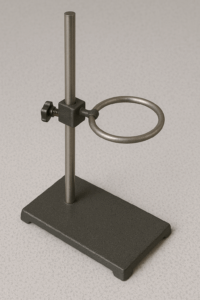

Shows a ring stand with ring.
Image generated by OpenAI’s DALL·E.

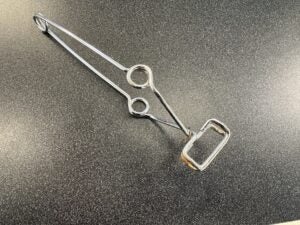

Shows a test tube clamp.
Stainless Test Tube Clamp Carol Stallworth CCBYNC

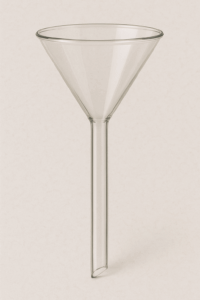

Shows a glass funnel.
Image generated by OpenAI’s DALL·E.
